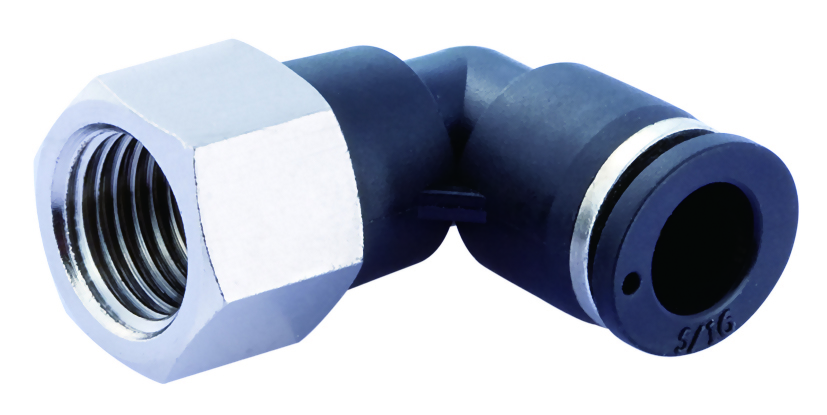

省力接頭PLF
型號 :
PLF-inch
ㆍ工作壓力範圍 / 0~150 psi /0~9.9Kgf/cm2 (0~990 KPa)
ㆍ負壓 /-29.5in Hg/-750 mmHg(-750 Torr)
ㆍ工作溫度範圍 / 32°F~140°F / 0~60°C
ㆍ負壓 /-29.5in Hg/-750 mmHg(-750 Torr)
ㆍ工作溫度範圍 / 32°F~140°F / 0~60°C
| 產品型號 | ØD |
T
(Thread)
|
L | E | A | H (Hex) | 每袋數量 | 每盒數量 |
| PLF 5/32-UNF | 5/32 | UNF 10/32 | 24.5 | 23.5 | 7 | 10 | 10 | 100 |
| PLF 5/32-N01 | 5/32 | NPT 1/8 | 28.5 | 23.5 | 8.5 | 14 | 10 | 50 |
| PLF 5/32-N02 | 5/32 | NPT 1/4 | 31 | 23.5 | 10.5 | 17 | 10 | 50 |
| PLF 3/16-UNF | 3/16 | UNF 10/32 | 24.5 | 23.5 | 7 | 10 | 10 | 100 |
| PLF 3/16-N01 | 3/16 | NPT 1/8 | 28.5 | 23.5 | 8.5 | 14 | 10 | 50 |
| PLF 3/16-N02 | 3/16 | NPT 1/4 | 31 | 23.5 | 10.5 | 17 | 10 | 50 |
| PLF 1/4-UNF | 1/4 | UNF 10/32 | 25.5 | 24 | 7 | 12 | 10 | 100 |
| PLF 1/4-N01 | 1/4 | NPT 1/8 | 29.5 | 24 | 8.5 | 14 | 10 | 50 |
| PLF 1/4-N02 | 1/4 | NPT 1/4 | 32 | 24 | 10.5 | 17 | 10 | 50 |
| PLF 1/4-N03 | 1/4 | NPT 3/8 | 33.5 | 25 | 11.5 | 21 | 10 | 50 |
| PLF 5/16-N01 | 5/16 | NPT 1/8 | 33 | 29.5 | 8.5 | 14 | 10 | 50 |
| PLF 5/16-N02 | 5/16 | NPT 1/4 | 35.5 | 29.5 | 10.5 | 17 | 10 | 50 |
| PLF 5/16-N03 | 5/16 | NPT 3/8 | 37 | 29.5 | 11.5 | 20 | 10 | 50 |
| PLF 3/8-N01 | 3/8 | NPT 1/8 | 34.5 | 36 | 8.5 | 17 | 5 | 25 |
| PLF 3/8-N02 | 3/8 | NPT 1/4 | 41 | 36 | 10.5 | 17 | 5 | 25 |
| PLF 3/8-N03 | 3/8 | NPT 3/8 | 43 | 36 | 11.5 | 21 | 5 | 25 |
| PLF 3/8-N04 | 3/8 | NPT 1/2 | 46 | 36 | 14.5 | 24 | 5 | 25 |
| PLF 1/2-N02 | 1/2 | NPT 1/4 | 44.5 | 38.5 | 10.5 | 19 | 5 | 25 |
| PLF 1/2-N03 | 1/2 | NPT 3/8 | 46 | 38.5 | 11.5 | 21 | 5 | 25 |
| PLF 1/2-N04 | 1/2 | NPT 1/2 | 49 | 38.5 | 14.5 | 24 | 5 | 25 |
ㆍ省力接頭可即時連接管材
ㆍ通過按壓套管，即可輕鬆拔除與管材連接
ㆍ接頭已在螺紋上進行了鐵氟龍處理與O形環
ㆍ黃銅鍍鎳的本體確保抗污染性能，延長產品壽命
ㆍ通過按壓套管，即可輕鬆拔除與管材連接
ㆍ接頭已在螺紋上進行了鐵氟龍處理與O形環
ㆍ黃銅鍍鎳的本體確保抗污染性能，延長產品壽命
ㆍ適用流體類型/空氣
