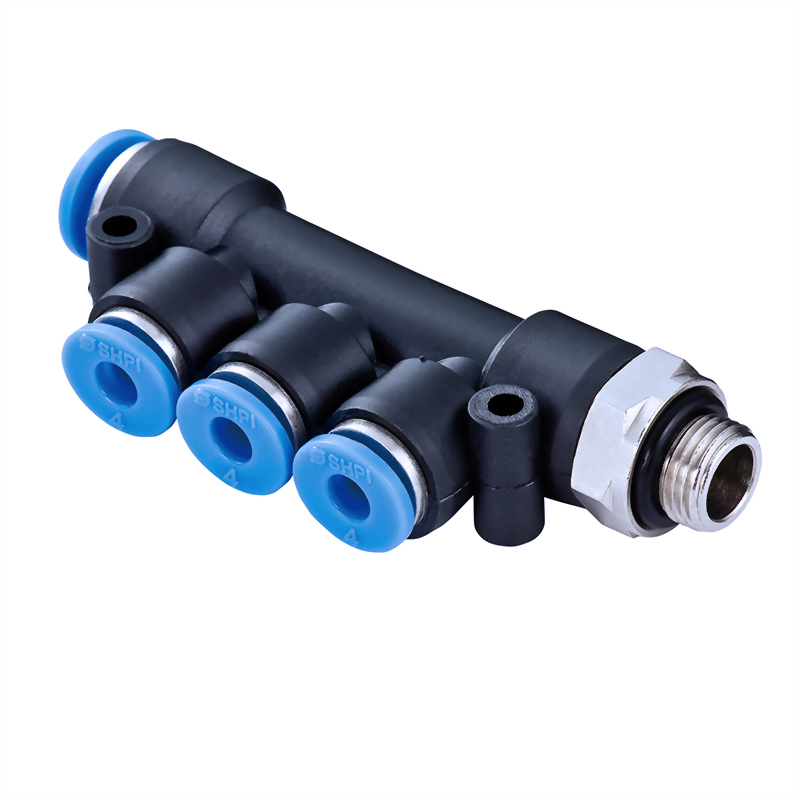

省力接頭PKD
型號 :
PKD-g
ㆍ工作壓力範圍 / 0~150 psi /0~9.9Kgf/cm2 (0~990 KPa)
ㆍ負壓 /-29.5in Hg/-750 mmHg(-750 Torr)
ㆍ工作溫度範圍 / 32°F~140°F / 0~60°C
ㆍ負壓 /-29.5in Hg/-750 mmHg(-750 Torr)
ㆍ工作溫度範圍 / 32°F~140°F / 0~60°C
| 產品型號 | ØD | ØD2 | L | E | M1 | M2 | C | A |
H (Hex)
(mm)
|
T | 每袋數量 | 每盒數量 |
| PKD 04-G01 | 4 | 4 | 67 | 27 | 9 | 41.5 | 3.2 | 5.5 | 14 | G 1/8 | 5 | 25 |
| PKD 0604-G01 | 6 | 4 | 67 | 27 | 9 | 41.5 | 3.2 | 5.5 | 14 | G 1/8 | 5 | 25 |
| PKD 0804-G01 | 8 | 4 | 67.5 | 27 | 9 | 41.5 | 3.2 | 5.5 | 14 | G 1/8 | 5 | 25 |
| PKD 0804-G02 | 8 | 4 | 69 | 27 | 9 | 41.5 | 3.2 | 6.5 | 17 | G 1/4 | 5 | 25 |
| PKD 06-G01 | 6 | 6 | 67 | 27 | 9 | 41.5 | 3.2 | 5.5 | 14 | G 1/8 | 5 | 25 |
| PKD 06-G02 | 6 | 6 | 69 | 27 | 9 | 41.5 | 3.2 | 5.5 | 14 | G 1/4 | 5 | 25 |
| PKD 0806-G01 | 8 | 6 | 68 | 27 | 9 | 41.5 | 3.2 | 5.5 | 14 | G 1/8 | 5 | 25 |
| PKD 0806-G02 | 8 | 6 | 69 | 27 | 9 | 41.5 | 3.2 | 6.5 | 17 | G 1/4 | 5 | 25 |
| PKD 08-G02 | 8 | 8 | 86.8 | 33 | 12 | 47.8 | 4.2 | 6.5 | 17 | G 1/4 | 5 | 25 |
| PKD 08-G03 | 8 | 8 | 86.8 | 33 | 12 | 47.8 | 4.2 | 6.5 | 20 | G 3/8 | 5 | 25 |
| PKD 1006-G02 | 10 | 6 | 89 | 33 | 12 | 47.8 | 4.2 | 6.5 | 17 | G 1/4 | 5 | 20 |
| PKD 1006-G03 | 10 | 6 | 87.8 | 33 | 12 | 47.8 | 4.2 | 6.5 | 20 | G 3/8 | 5 | 20 |
| PKD 1008-G02 | 10 | 8 | 89 | 33 | 12 | 47.8 | 4.2 | 6.5 | 17 | G 1/4 | 5 | 15 |
| PKD 1008-G03 | 10 | 8 | 89.5 | 33 | 12 | 47.8 | 4.2 | 6.5 | 20 | G 3/8 | 5 | 15 |
| PKD 10-G02 | 10 | 10 | 97 | 37.5 | 12 | 56.5 | 4.5 | 6.5 | 17 | G 1/4 | 5 | 15 |
| PKD 10-G03 | 10 | 10 | 97.5 | 37.5 | 12 | 56.5 | 4.5 | 6.5 | 20 | G 3/8 | 5 | 15 |
| PKD 10-G04 | 10 | 10 | 100.5 | 37.5 | 12 | 56.5 | 4.5 | 10 | 24 | G 1/2 | 5 | 15 |
| PKD 12-08-G03 | 12 | 8 | 97.5 | 37 | 15.5 | 59.5 | 4.5 | 6.5 | 20 | G 3/8 | 5 | 15 |
| PKD 12-08-G04 | 12 | 8 | 101 | 37 | 15.5 | 59.5 | 4.5 | 10 | 24 | G 1/2 | 5 | 15 |
| PKD 12-10-G03 | 12 | 10 | 97.5 | 38 | 15.5 | 59.5 | 4.5 | 6.5 | 20 | G 3/8 | 5 | 15 |
| PKD 12-10-G04 | 12 | 10 | 101 | 38 | 15.5 | 59.5 | 4.5 | 10 | 24 | G 1/2 | 5 | 15 |
| PKD 12-G03 | 12 | 12 | 101.5 | 39.7 | 15.5 | 67.5 | 4.5 | 6.5 | 20 | G 3/8 | 5 | 15 |
| PKD 12-G04 | 12 | 12 | 105 | 39.7 | 15.5 | 67.5 | 4.5 | 10 | 24 | G 1/2 | 5 | 15 |
ㆍ省力接頭可即時連接管材
ㆍ通過按壓套管，即可輕鬆拔除與管材連接
ㆍ接頭已在螺紋上進行了鐵氟龍處理與O形環
ㆍ黃銅鍍鎳的本體確保抗污染性能，延長產品壽命
ㆍ通過按壓套管，即可輕鬆拔除與管材連接
ㆍ接頭已在螺紋上進行了鐵氟龍處理與O形環
ㆍ黃銅鍍鎳的本體確保抗污染性能，延長產品壽命
ㆍ適用流體類型/空氣
